Flex IS TS

Hot End - Control System

6,8,10,12 section IS Machine - SG, DG,
TG, QG,( Tandem 배열 포함) 적용

개별적 Section controller 및 24 VDC
Power supply (Section당 1개)

유럽안전 표준 규격(CE)에 부합한 Pilz digital
technology를 토대로 하여 개별적 MS Switch 및
E-Stop Switch

Data 저장 장치가 있어 Hardware를 교환시
Data를 재 Setting 하지 않아도 됨

Ethernet Communication 및 Internet 및
Telephone Modem을 통한 원격 접근

Ware Handling Controller 포함

Modern Console

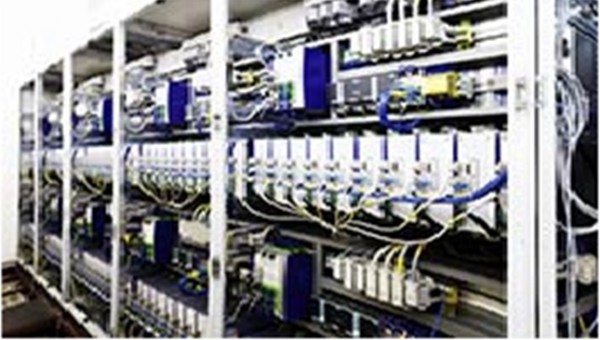

Machine Controller

1.TH 및 TR, 565 Shear 및 535 Gob Distributor

2. Machine conveyor, ware transfer, cross conveyor 및 stacker drive용 Intergraed Drive

3. Gob Distributor, Machine Conveyor 및 Ware transfer용 interlock

Section Controller

1. 64+ outputs with high repeatability and current supervision for NC and NC Valves

2. 80 Events free assignable to outputs with atributes for blank or blow side and delivery

3. 8 Analog outputs with up to 4 pressure levels ( TS only)

4. Manual stop with and without delivery depnedency

5. Individual HEWR with manual or automatic reset

6. Special Cycle for Cold blanks or cold molds

7. Special Cycle for Finish Measurement, Alternate Stop, Blowhead Adjust and Neckring Change
( TS Only)

8. Blow side special cycle

User Console

1. PC- Based visualization and data base

2. 산업용 computer 및 touch screen

3. Ergonomic screen navigation

4. Special Cycle configuration tool

5. Forming event configutation

6. Standard machines,

7. Job Handling and Job import / export

8. Software version control and upgrade function

9. Alarms, Logging and diagnostic tools

10. Language Library

11. Access rights

12. Hand Held Terminal

13. Production report, Downtime report and Job Memo

14. Raid 1- Back up system

15. Multi Gob Weight Feeder (준비중)
